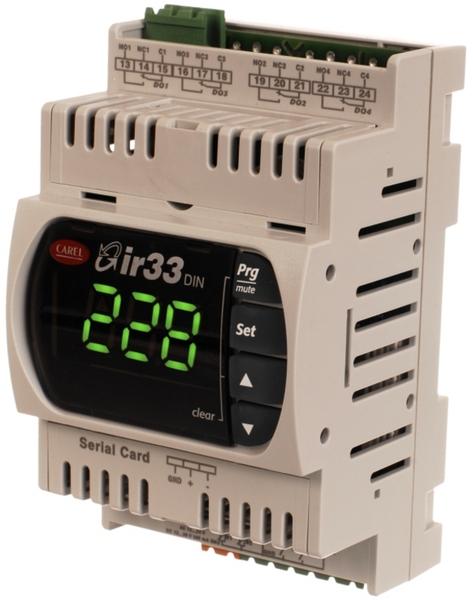

DN33 Universal Electronic Controllers

DN33 Universal Electronic Controllers

Product Features

  • Temperature input or universal input
  • Relay or SSR output versions
  • 2 independent control loops
  • Auto-tuning PID control
  • Real time clock
  • Infrared receiver and buzzer
  • Transformers available for 110V or 230V
  • Plug-in terminals

The DN33 universal electronic controllers replace the IRDR range, offering additional features such as auto-tuning PID control and real time clock for managing working cycles and logging alarms. Temperature only versions are available with NTC, PTC or PT1000 inputs, whilst the universal versions can also accept PT100, J and K type thermocouples, DC Voltage and DC mA inputs. The controllers feature a simple user interface, two independent control loops and are housed in a compact DIN rail mounting enclosure. All versions can be connected to a network for monitoring and programming, using the optional RS-485 serial interface. The DN33 controllers are powered from 12 to 24Vac/dc and optional transformers are available for powering the controllers from 110Vac or 230Vac.
