TE48 Dual Digital Timers

TE48 Dual Digital Timers

Product Features

  • Dual 4 digit LED display timer
  • 12 programmable timing modes
  • 4 time ranges from 0.1 sec to 99:59 hrs
  • 12 to 24Vac/dc or 90 to 264Vac
  • 1 changeover and 1 N/O relay output
  • Programmable reset function
  • External hold and reset
  • Security passcode
  • IP65 enclosure code
  • Panel mounting

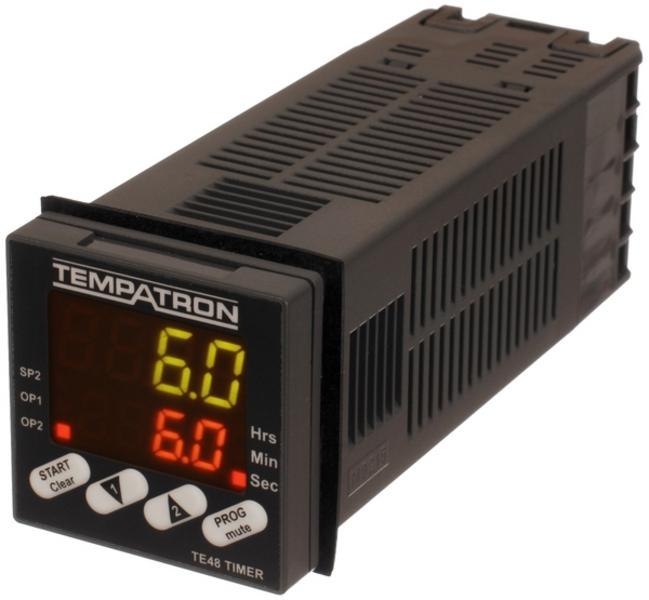

The Tempatron TE48 dual 4 digit digital timer is a multifunction, multi-time range digital timer suitable for controlling operation of equipment, machinery, systems or processes in a wide range of industrial applications. Twelve timing functions can be selected together with time ranges from 0.1 second to 99:59 hours, to operate two independent relay output contacts which are isolated from the supply voltage. The output contacts can be configured as two timed outputs, or one timed and one instantaneous output. These timers are housed in a compact DIN48 square panel mounting enclosure and are powered from 12 to 24Vac/dc or 90 to 264Vac.

Buy From RS

Key Terms: TE48 - TE48ML - TE48MH - Digital Timer - Dual Digital Timer - 4 Digit - LED Timer - Multifunction Timer - Multi-time range timer - 3081579 - 3081585
