TTDR Dual Digital Timers

TTDR Dual Digital Timers

Product Features

  • 4 digit green LED display dual timer
  • 9 programmable timing modes
  • 6 time ranges from 0.1 sec to 99:59 hrs
  • 12 to 24Vac/dc or 110/230Vac
  • 1 changeover and 1 N/O relay output
  • Programmable reset function
  • External hold and reset
  • Security passcode
  • IP40 enclosure code
  • DIN rail mounting

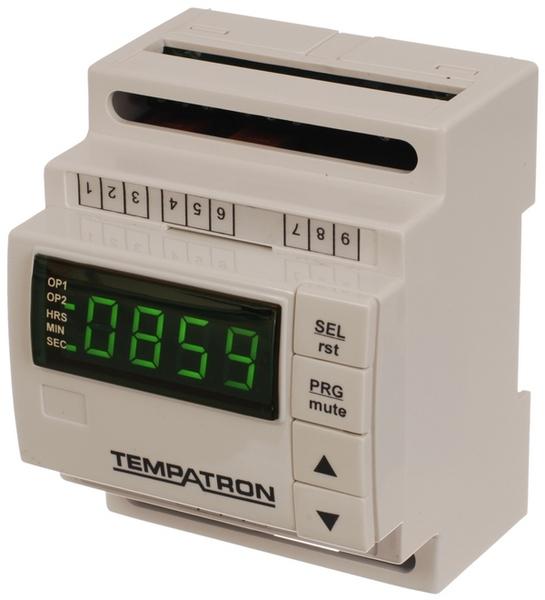

The Tempatron TTDR dual digital timer is a 4 digit multifunction, multi-time range digital timer suitable for controlling operation of equipment, machinery, systems or processes in a wide range of industrial applications. Nine timing functions can be selected together with time ranges from 0.1 second to 99:59 hours, to operate two independent relay output contacts which are isolated from the supply voltage. The output contacts can be configured as two timed outputs, or one timed and one instantaneous output. These timers are housed in a compact DIN rail mounting enclosure and are powered from 12 to 24Vac/dc or 110/230Vac.
