F-Series Temperature Controllers

F-Series Temperature Controllers

Product Features

  • On/Off temperature control action
  • K type thermocouple or PT100 input
  • Supply voltage 110Vac or 230Vac
  • Deviation meter output on PT100 model
  • Standard DIN48 square size
  • Plug-in socket or panel mounting

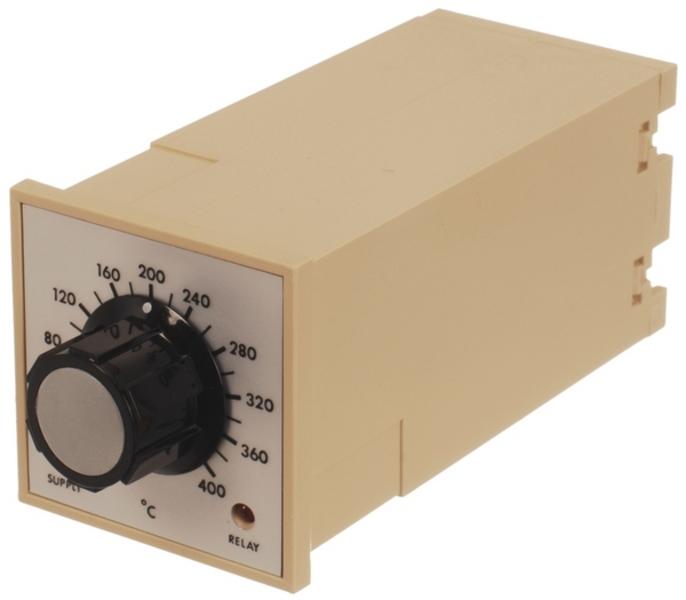

The Tempatron F-series temperature controllers are simple on/off temperature controllers for control of temperature processes in a wide range of industrial applications. The FTST model is for a K type thermocouple input and the FPRT model is for a 2 wire or 3 wire PT100 (RTD) input. The temperature controllers are housed in a compact DIN48 square enclosure which can either panel mount or surface/DIN rail mount to a socket and they are auxiliary powered from either 110Vac or 230Vac. The 5 Amp rated single pole changeover relay output contact is isolated from the supply voltage, and the temperature controllers have two LEDs to indicate both power and relay status.

Buy From RS

Key Terms: F Series - FTST - FPRT - FTST200K - FTST400K - FTST1200K - FPRT100 - Temperature Controller - Analogue - 346378 - 348144 - 8091041 - 8091048
