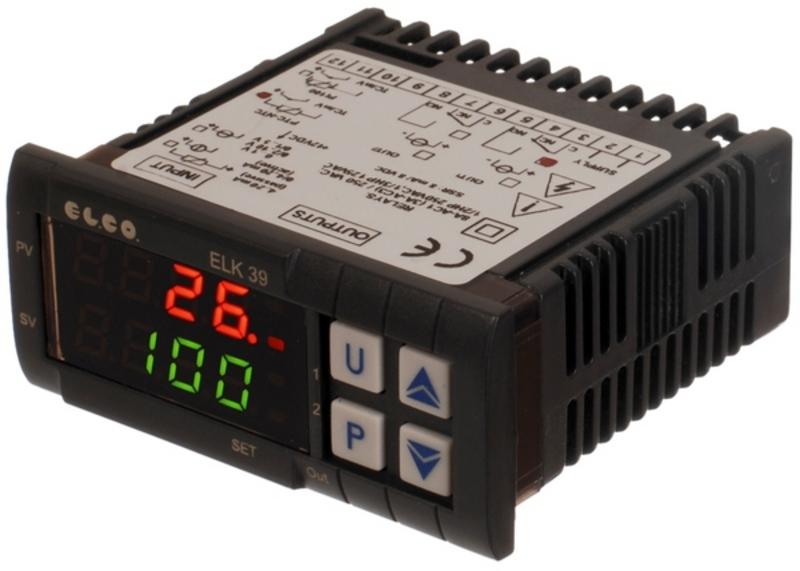

ELK39 Universal Electronic Controllers

ELK39 Universal Electronic Controllers

Product Features

  • Temperature input or process input
  • Dual 4 digit red & green LED display
  • Dual display of set point & process value
  • NTC, PTC, thermocouple, PT100 inputs
  • 0/1-5Vdc, 0/2-10Vdc, 0/4-20mA inputs
  • Up to 4 programmable set points
  • 1 or 2 relay or SSR output versions
  • Auto-tuning PID or on/off control modes
  • IP65 enclosure code

The ELK39 universal electronic controllers offer 4 digit auto-tuning PID control with a wide range of temperature or analogue process inputs, displaying the setpoint and process variable with a dual red and green LED display. Versions are available with NTC, PTC, PT100 and J and K type thermocouple inputs for temperature control, and DC Voltage or mA inputs for process control. The controllers feature a simple user interface, have up to 4 programmable setpoints and are housed in a compact panel mounting enclosure. The ELK39 electronic controllers are powered from 12Vac/dc, 24Vac/dc or 100 to 240Vac and are available with 1 or 2 relay or SSR drive outputs. A single display version (ELK38) which just displays the setpoint is also available.

Datasheet Manual
