DTC410 Temperature Controllers

DTC410 Temperature Controllers

Product Features

  • On/Off temperature control action
  • Reverse or direct action
  • Relay output
  • J, K, T or N type thermocouple inputs
  • PT100 input
  • 10 to 32Vac/dc or 90 to 260Vac
  • Standard DIN48 square size

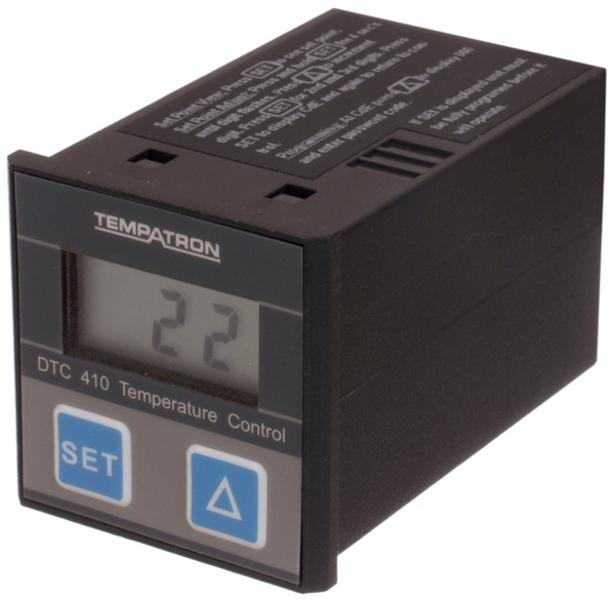

The Tempatron DTC410 series LCD digital temperature controllers are designed for simple on/off control of temperature or processes in a wide range of industrial applications. The controllers operate from a range of thermocouple or 3 wire PT100 (RTD) input sensors and offer simple two button programming, giving an easy set up procedure. The temperature controllers are housed in a compact DIN48 square enclosure which can either panel mount or surface/DIN rail mount to a socket, and are powered from either 10 to 32Vac/dc or 90 to 260Vac. The 3 Amp rated single pole changeover relay output contact is isolated from the supply voltage, and the temperature controllers have clear message displays, providing indication of alarms or error status.

Buy From RS Buy From Farnell

Key Terms: DTC410 - DTC410-01 - DTC410-02 - DTC410-01-ML - DTC410-02-ML - DTC410-01-MH - DTC410-02-MH - Digital - Temperature Controller - LCD - 3390075 - 3390081 - 3390097 - 3390104 - 3390126 - 3390132
