TF48 Dual Digital Timers

TF48 Dual Digital Timers

Product Features

  • Dual 4 digit LCD green display timer
  • 13 programmable timing modes
  • 4 time ranges from 0.01 sec to 9999 hrs
  • 7-24Vac/9-30Vdc or 90-250Vac
  • 1 changeover and 1 N/O relay output
  • 2 SSR drive outputs
  • Programmable start, gate and reset
  • External hold and reset
  • Security passcode
  • IP65 enclosure code
  • Panel mounting

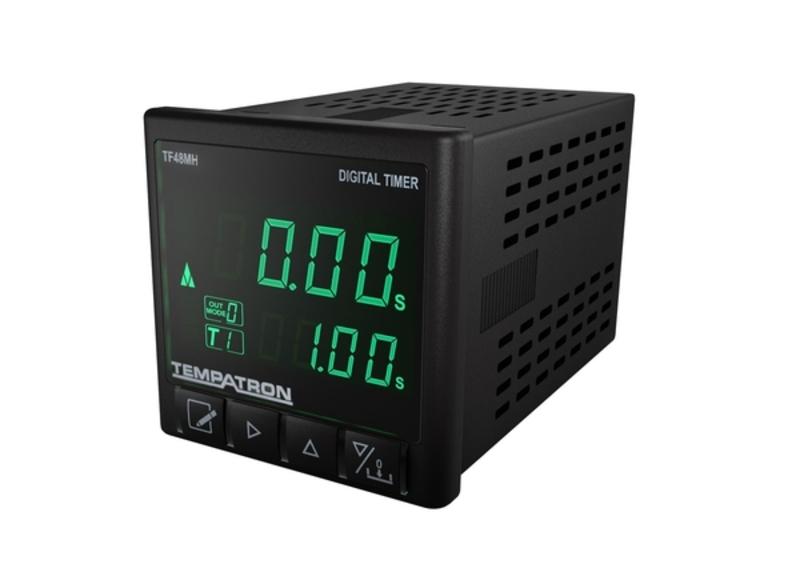

The Tempatron TF48 dual 4 digit digital timer is a multifunction, multi-time range digital timer suitable for controlling operation of equipment, machinery, systems or processes in a wide range of industrial applications. Thirteen timing functions can be selected together with time ranges from 0.01 seconds to 9999 hours, to operate two independent relay output contacts which are isolated from the supply voltage. The output contacts can be configured as two timed outputs, or one timed and one instantaneous output. These timers are housed in a compact DIN48 square panel mounting enclosure and are powered from 7-24Vac/9-30Vdc or 90-250Vac.
