MINITACH2-MCU Tachometer Relay
Product Features
- DIN rail mounting
- PCB model ideal for OEM applications
- 8 ranges (10rpm to 15,000rpm)
- Programmable rpm range feature
- Unique programmable rpm speed band
- PWM analogue rpm output feature
- 16 Amp changeover relay output
- 12 to 24Vdc powered
- LOCKPOT operation feature
- LED to indicate rpm or alarm status
- Optional remote LED (pcb model only)
- Dual optocoupler output upon request

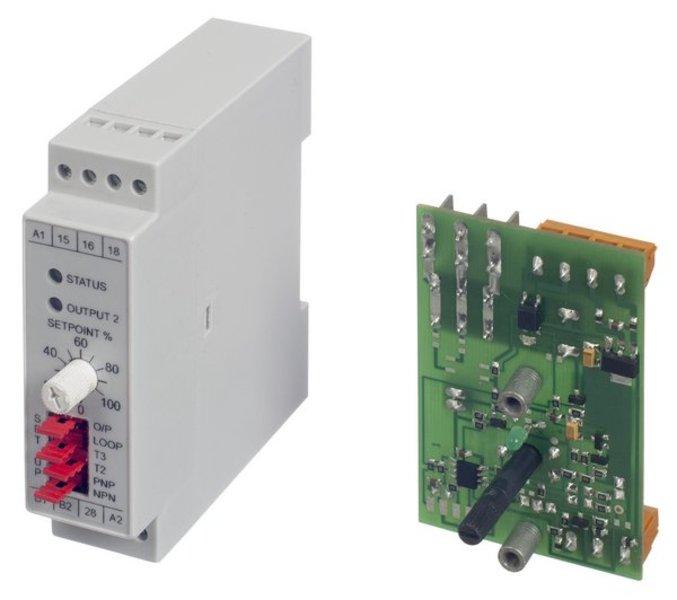

The Tempatron MINITACH2-MCU multi range tachometer relays are designed to detect not only overspeed/underspeed conditions but also monitor and calculate that the speed lies within a pre-programmed rpm band, providing continuous confirmation that the user's system is operating within the correct speed limits. They combine analogue potentiometer setting simplicity with microprocessor based, digital timing software. Eight different rpm ranges can be selected (via jumper links) covering speeds from 10rpm to 15,000rpm. The DIN rail mounting model is ideal for one off control panel applications whilst the chassis mounting pcb model is ideal for medium volume OEM applications, measuring only 70mm x 45mm. Both models are 12-24Vdc powered and have a 16 Amp changeover relay output which is isolated from the supply voltage and an LED to indicate current rpm or alarm status.
