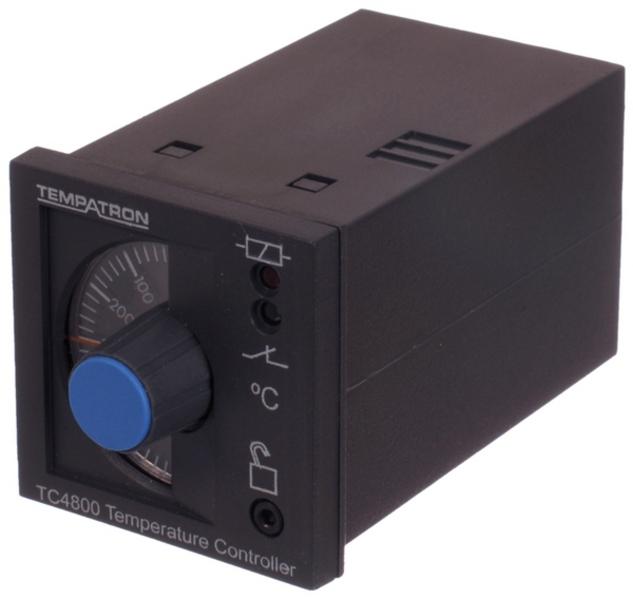

TC4800 Temperature Controllers
Product Features
- On/Off, PD or latching control action
- Reverse or direct action
- Relay or SSR output
- J, K, T or R type thermocouple inputs
- PT100 or 4-20mA inputs
- 24Vac/dc or 110/230Vac
- Deviation LEDs and meter output
- Standard DIN48 square size
- Plug-in socket or panel mounting
- Lockable dial to prevent tampering
The Tempatron TC4800 series temperature controllers are available in On/Off, PD (proportional and derivative) and latching versions, and are designed for simple control of temperature or processes in a wide range of industrial applications. The controllers operate from a range of thermocouple or 3 wire PT100 (RTD) input sensors or from a 4-20mA process signal. The temperature controllers are housed in a compact DIN48 square enclosure which can either panel mount or surface/DIN rail mount to a socket and they are auxiliary powered from either 24Vac/dc or 110/230Vac. The 5 Amp rated single pole changeover relay output contact is isolated from the supply voltage, and the temperature controllers have two LEDs to indicate both power and relay status.
Key Terms: TC48 - TC4800 - TC4810 - TC4830 - TC4850 - TC4860 - Temperature Controller - Process Controller - Analogue
Made In U.K.
